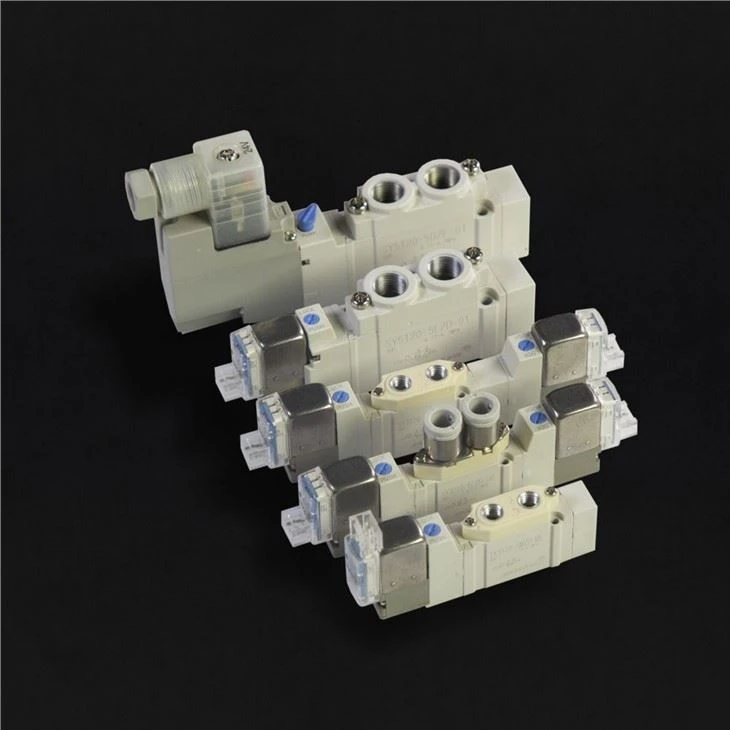

I-SY7420 i-valve ye-solenoid series ine-stroke emfutshane, umthamo omkhulu we-fluid, i-aerodynamic current encinci, ukufudumeza okuncinci kunye namandla aphantsi. Kwi-DC24 V, okwangoku yi-21 Ma kuphela, kwaye isibonakaliso esivela kumlawuli sinokuqhutywa ngokuthe ngqo. Ngenxa yokusetyenziswa kwamandla aphantsi kunye nezinto ezincinci zokutshintsha, iindleko zokusetyenziswa nazo ziphantsi.

● SY{0}} indawo yokukhupha iziko

●SY{0}W ikhoyili yamandla aphantsi{1}} Ugcino lwamandla kunye nokungeyo{2}}kungcoliseko

●Izincedisi zokulinga ezichanekileyo{{0}ezichanekileyo. ixesha excitation kuphela 0.05 imizuzwana

● Ucingo olunamelled luthathwa ngaphandle lusuka e-ELEKTRISOLA, eJamani

Uthotho		SY3000	SY5000	SY7000	SY9000
Ulwelo		Umoya
Umqhubi wangaphakathi Uxinzelelo lokusebenza uluhlu (Mpa)	2 indawo eyodwa	0.15 ukuya ku-0.7
	2 indawo kabini	0.1 ukuya ku-0.7
	3 iposini	0.2 ukuya ku-0.7
Ubushushu be-ambient kunye nolwelo (iqondo)	-10 ukuya ku-50 (hayi umkhenkce)

Max. ukusebenza rhoqo (Hz)	2 indawo enye, kabini	10	5	5	5
	3 isikhundla	3	3	3	3
Ugqithiso lwesandla (Ukusebenza ngokuqhutywa ngesandla)	{0}}Ayitshixwayo uhlobo lokutyhala Tyhila-ujiko lokutshixa uhlobo olufakiweyo Tyhiliza{0}}isitshixa isimbo sokutshixa


I-pilot exhaust indlela	Uhlobo oluqhelekileyo lokukhupha ivalve engundoqo kunye neyokulinga

Ukuthambisa	Ayifuneki
Ukunyuka ukuqhelaniswa	Ayinamiqathango

Impembelelo / ukuxhathisa ukungcangcazela (m/s²)	150/30

Indawo ebiyelweyo	Ukuthintela uthuli(Iterminal ye-DIN kunye ne-M8 isinxibelelanisi: IP 65)
