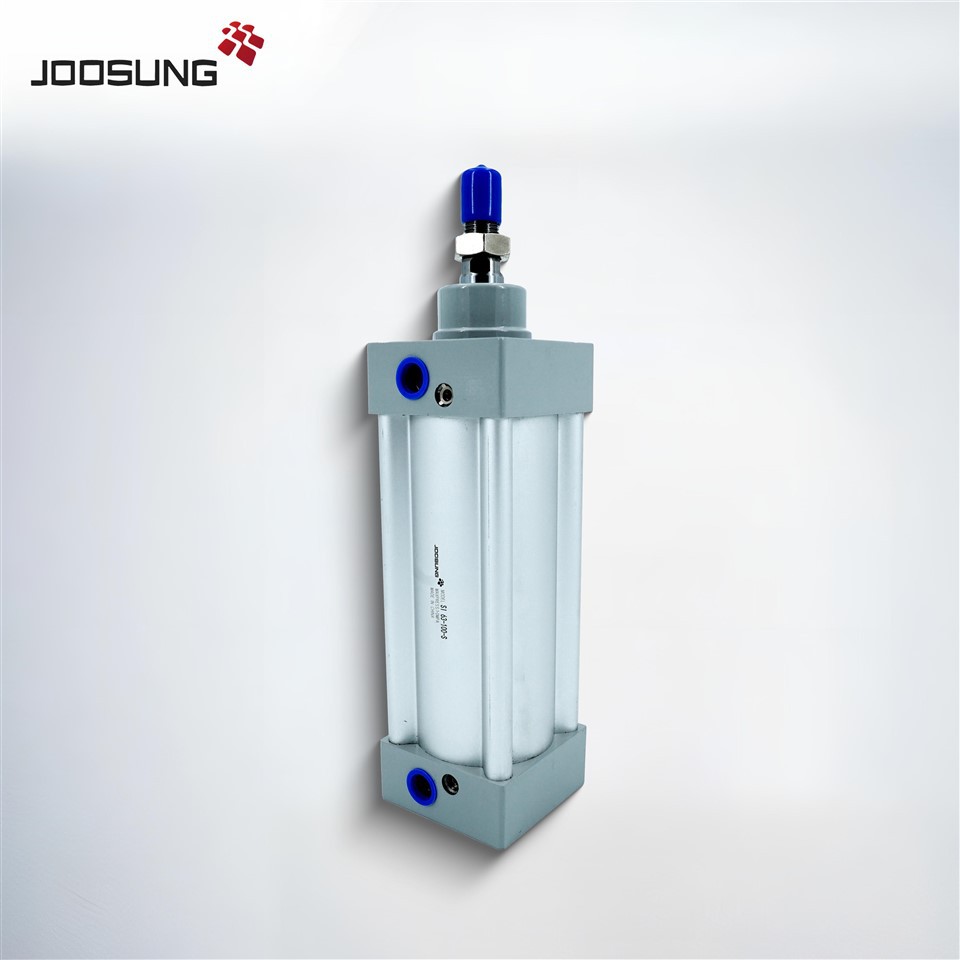

ISI cylinder ye-pneumatic eqhelekileyongumsebenzi onzima-owenza umsebenzi oyilwe ngokuthobelaISO6431 kunye nemigangatho ye-VDMA24562, ukuqinisekisa ukutshintshiselana kunye nezinye iisilinda eziqhelekileyo. Yenziwe ngeiprofayili ye-aluminium ekhutshiweyoineendawo zokubeka ezidityanisiweyo ze-T-, uthotho lwe-SI lubonelela ngamandla olwakhiwo oluphezulu, ukusebenza kakuhle, kunye nofakelo lwesivamvo olufanelekileyo.
Isetyenziswa ngokubanzi kwi-automation yemizi-mveliso apho ukusebenza okungaguqukiyo, ubomi benkonzo ende, kunye nokugcinwa lula kubalulekile. I-SI cylinder ithatha uyilo lwemodyuli kunye ne-cushioning ehlengahlengiswayo kunye neentlobo ngeentlobo zokunyuka kojongano ukuze zihambelane neemfuno ezahlukeneyo zesicelo.
|
Indlela yoku-odola i-SI Series Pneumatic Cylinder |
||||||
|
S |
I |
160 |
A |
50 |
20 |
S |
|
Umzekelo |
Ubungakanani bore |
Intonga yentonga |
I-Cylinder Stroke |
Istrowuku ehlengahlengiswayo |
Imagnethi |
|
|
Mna:Intlobo ezimbini ezidlalayo |
32 40 50 |
Akukho nto:Intsimbi yeCarbon |
Hayi le khowudi |
Akhonto:Ngaphandle kwemagnethi |
||
|
ID:Udidi lwentonga ezimbini |
63 80 100 |
A:SUS420J2 |
S:Kunye umazibuthe |
|||
|
IJ:Uhlobo lwestroke oluhlengahlengiswayo |
125 160 200 |
B:SUS304 |
10 20 30 40 50 75 100 |
|||
Ukukhangela ieyomeleleyo kunye netshintshiselwano ISO standard pneumatic cylinder?
ISI Series Standard Cylinderinikeza ukuhambelana komgangatho wehlabathi, imveliso eyomeleleyo, kunye{0}}nokuqina kwexesha elide kwizicelo zemizi-mveliso.
Qhagamshelana nathi namhlanjeiinkcukacha ezipheleleyo, imifuziselo ye-3D CAD, kunye nekowuteshini elungiselelweyo!
|
Inkcazo |
|||||||||
|
Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
Ipatheni eshukumayo |
Isenzo esiphindiweyo |
||||||||
|
Indawo yokusebenza |
Umoya Ohluziweyo |
||||||||
|
Uhlobo olusisigxina |
Uhlobo oluqhelekileyo lwe-FA Uhlobo lwe-FB Uhlobo lwe-CA Uhlobo lwe-CB Uhlobo lwe-SDB Uhlobo lwe-LB Uhlobo lwe-TC |
||||||||
|
Uluhlu loxinzelelo lokusebenza |
0.1-1.0MPa |
||||||||
|
Ukuqinisekisa Ukuxhathisa Uxinzelelo |
1.5MPa |
||||||||
|
Uluhlu lobushushu obusebenzayo |
-5-70 idigri |
||||||||
|
Uluhlu lwesantya sokuSebenza |
50-800 mm/s |
||||||||
|
Uhlobo lwesithinteli |
I-Adjustable Buffer |
||||||||
|
I-Buffer Stroke |
20mm |
26mm |
45mm |
||||||
|
SIUthothoIimodeli ezifumanekayo |
||||
|
SI32X25 |
SI32X50 |
SI32X75 |
SI32X100 |
SI32X125 |
|
SI32X150 |
SI40X50 |
SI40X75 |
SI40X100 |
SI40X125 |
|
SI40X150 |
SI40X175 |
SI40X200 |
SI40X250 |
SI50X50 |
|
SI50X75 |
SI50X80 |
SI50X100 |
SI50X125 |
SI50X150 |
|
SI50X160 |
SI50X175 |
SI50X200 |
SI50X250 |
SI50X300 |
|
SI63X75 |
SI63X80 |
SI63X100 |
SI63X125 |
SI63X150 |
|
SI63X200 |
SI63X250 |
SI63X300 |
SI63X350 |
SI80X80 |
|
SI80X100 |
SI80X125 |
SI80X150 |
SI80X175 |
SI80X200 |
|
SI80X250 |
SI80X300 |
SI80X350 |
SI80X400 |
SI80X450 |
