Indlela yocingo yeiivalve ze-solenoidngenene yeyona ilula phakathi kwazo zonke iivalvu zolawulo oluzenzekelayo. Ngokuqhelekileyo, iindlela zocingo esidibana nazo zimbini kuphela iintlobo: uhlobo olukhokelayo kunye nohlobo lwebhokisi yocingo. Ufakwa njani ucingo kwiValve yeSolenoid yomoya? Shwankathela kwaye wenze ngokubanzi indlela yokufaka ucingo kwiValve yeSolenoid yePeneumatic ngendlela elula neqondakalayo.
Ngokohlobo lwe-wiring, kukho iindidi ezimbini ezisetyenziswa ngokuqhelekileyo zocingo kwiivalve ze-solenoid: uhlobo olukhokelayo kunye nohlobo lwebhokisi locingo.
Okokuqala, umgaqo uyafana. Uhlobo olukhokelayo ngokwenene ukukhupha iplagi kwibhokisi yocingo kwaye udibanise intambo yamandla ukusuka ngaphakathi kwekhoyili ukwenza uhlobo oludibeneyo.
1. Uhlobo lokukhokela; Isetyenziswa kakhulu ekungangeni manzi kunye neentlobo zogqabhuko-dubulo ({1}}ezingangenwanga ngumlilo). Inzuzo yalo kukuba ucingo olukhokelayo lunokudibaniswa ngokuthe ngqo kwinkqubo yokulawula. Ukungalungi kukuba ukuba umgama ovela kwinkqubo yokulawula ude kakhulu, i-wiring eyongezelelweyo iyafuneka.
2. Uhlobo lwebhokisi yocingo: Okwangoku, indlela yocingo esetyenziswa kakhulu yile, eyamkela izixhumi ze-DIN. Nokuba ikude kangakanani inkqubo yolawulo, ayisayi kuchaphazeleka; akuyi kubakho ingcingo ezaphukileyo phakathi, kwaye akukho nodes ezongezelelweyo ziya kongezwa.
Uqhagamshelwano lwamandla (DN32-DN150):
Ngaphambi kokudibanisa unikezelo lwamandla, nceda uqinisekise ukuba amandla alinganisiweyo e-valve ahambelana namandla anikezelweyo.
1. Cima amandla kwaye ukhulule ibhokisi ye-junction.
2. Kumzimba wokudibanisa, uya kufumana ibhodi yesekethe yokulungisa njengoko kuboniswe kumzobo.
3. Xhuma ucingo oluphilayo kunye nocingo olungathathi hlangothi kwii-terminals 1 kunye ne-2, ngokulandelanayo. Ezi ziingcingo ezisezantsi. Lumka ungabuyi umva uqhakamshelwano locingo oluphilayo kunye nocingo oluphakathi{5}} Faka kwakhona ibhokisi yesiphambuka. Qaphela: Ukwandisa ubomi benkonzo yevalve, nceda ufake zonke iigaskets ngokuchanekileyo.
Uxhumo lwamandla (i-DN200): Indlela yocingo iyafana naleyo yombane wokuphuma kwe-12Vde okanye i-24Vde ukusuka kwi-DN15 ukuya kwi-DN25 (Icandelo B).
Okwesibini, zihlelwa ngohlobo lwekhoyili, ezixhaphakileyo ziquka eyodwa-ulawulo lokutshintsha ikhoyili (90% yeemveliso ezikwiimarike zolu hlobo), enye -ikhoyili yokuzibamba{3}}uhlobo lokubamba, kunye-nohlobo olubambekayo lwekhoyili{5}}yokubamba.
Iingcingo zohlobo olulodwa-zolawulo lokutshintsha ikhoyili yeyona ixhaphakileyo. Nokuba luhlobo olukhokelayo okanye uhlobo lwebhokisi yocingo, ineengcingo ezintathu.
Ukuba ilawulwa ngumsinga othe ngqo, onjenge-DC24V, kukho iipali ezivumayo, iipali ezingezizo, kunye neengcingo eziphantsi komhlaba. Akukho mahluko phakathi kweepali ezilungileyo nezingalunganga. Khumbula ukuba ungahluleli phakathi kweepali ezilungileyo nezingalunganga!
② Ukuba ilawulwa ngokutshintshana kwangoku, njenge-AC220V, kukho iingcingo ezingathathi hlangothi, iingcingo eziphilayo, kunye neengcingo zomhlaba. Akukho mahluko phakathi kweengcingo ezingathathi hlangothi kunye neziphilayo. Ngokufanayo, akukho mahluko phakathi kweengcingo ezingathathi hlangothi kunye neziphilayo.
2. Iingcingo zomntu omnye-zekhoyili self{2}}ukubamba uhlobo lolawulo lweevalvu zesolenoid; Olu hlobo lusebenza kuphela kwiinkqubo zolawulo lwe-DC. Ineengcingo ezintathu, ezizezi, A, B, kunye no-C, phakathi kwazo u-B yitheminali eqhelekileyo.
Xa u-A eqhagamshelwe kwi-terminal ene-positive kunye no-B kwi-terminal engafanelekanga, ivalve ye-solenoid ivuliwe. Emva kokuba umbane ucinyiwe, i-valve ye-solenoid ihlala ivulekile kwaye ayifuni umbane ukuyigcina ngeli xesha.
② Qhagamshela u-C kwi-terminal ene-positive kunye no-B kwi-terminal engafanelekanga. Ivalve ye-solenoid ivaliwe. Emva kokuba umbane ucinyiwe, i-valve ye-solenoid ihlala ivaliwe. Ngokufanayo, ngeli xesha, i-valve ye-solenoid ayisebenzisi umbane.
Qaphela:{0}}I-coil self{1}}ebambe iivalvu ze-solenoid zisetyenziswa kakhulu kwiinkqubo zolawulo lwe-pulse ezisebenza ixesha elide kwaye zingenawo amandla aneleyo.
4 Umgaqo wolawulo ulingana naleyo yohlobo olulodwa- lokuzibamba{4}}lokubamba, kodwa lo wamkela ulawulo lwekhoyili oluzimeleyo lokutshintsha. Isetyenziswa kakhulu kulawulo lokubetha kwentliziyo kwezinye{6}}iivalvu eziphezulu zobushushu be-solenoid kunye{7}}noxinzelelo oluphezulu lweendawo zeevalvu ze-solenoid.
Ilingana nocingo lweeseti ezimbini zohlobo olunye-lolawulo lokutshintsha ikhoyili, enekhoyili enye kuphela elawula imo enye. Emva kokucima umbane, ivalve iya kuhlala. Umzuzwana i-coil ephezulu inikwe amandla, i-valve ye-solenoid iyavula; okomzuzwana xa ikhoyili yecala ivuliwe, ivalve ye-solenoid iyavala.
Indlela yocingo yevalve ye-solenoid yomoya

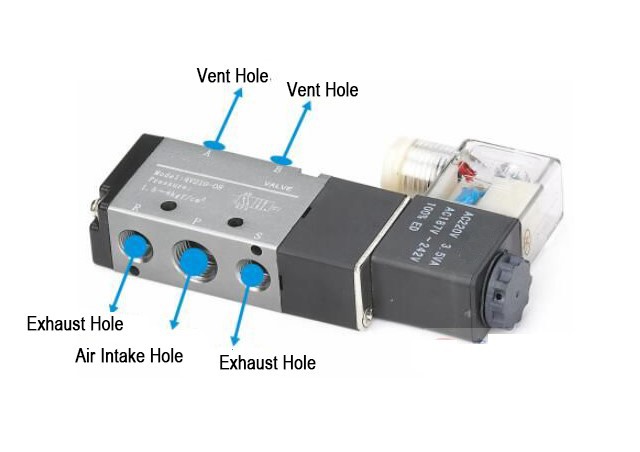

Indlela yocingo: Igalelo elinye kunye neziphumo ezimbini. Igalelo elinye ngumthombo womoya, kwaye iziphumo ezimbini zinye kwintloko ye-membrane kwaye enye iya kuphuma. Iivalve ze-solenoid ezifakwe ngokuthe ngqo kumbhobho zidla ngokuba zii-solenoid zombane, ezinokuthi zilawule amazwe amabini kuphela: ukuvala nokuvula.
Kukho umngxuma ovalekileyo ngaphakathi kwevalve ye-solenoid yomoya, enemingxuma evuleke kwiindawo ezahlukeneyo. Umngxuma ngamnye wevalve ye-solenoid yomoya ukhokelela kumbhobho weoyile owahlukileyo. Embindini womngxuma kukho ivalve, kwaye macala omabini kukho iimagnethi ezimbini zombane. Xa ikhoyili yelinye icala lemagnethi yenziwe amandla, umzimba wevalvu uya kutsaleleka kwelo cala.
I-valve ye-solenoid ye-pneumatic ivala okanye ivuza imingxuma yokukhupha i-oyile eyahlukeneyo ngokulawula ukuhamba komzimba wevalve, ngelixa umngxuma wokungena oyile uhlala uvulekile. Ioyile yeHydraulic iya kungena kwimibhobho yokukhutshwa kweoyile eyahlukeneyo kwaye ityhale ipiston kwisilinda ngoxinzelelo lweoyile kwivalve ye-solenoid yepneumatic.
Ngale ndlela, ukunyakaza komatshini we-valve ye-solenoid yonke inokulawulwa ngokulawula i-electromagnetic valve ye-solenoid ye-pneumatic.
Indlela yocingo ye-valve ye-solenoid ye-pneumatic: Xhuma kwi-coil ye-Solenoid ye-Pneumatic. Kukho amanqaku amathathu ewonke kwikhoyili yeSolenoid yePneumatic. Qhagamshela amanqaku amabini ngasekhohlo nasekunene, kwaye musa ukufakela inqaku eliphakathi.
I-pneumatic piston actuator isebenzisa umoya ocinezelweyo njengomthombo wamandla. Ngokuhamba kwepiston, iqhuba ingalo yecrank ukuba ijikeleze idigri ezingama-90, ngaloo ndlela ifezekisa injongo yokuvula nokuvala ngokuzenzekelayo ivalve.
Amacandelo aphambili e-valve ye-pneumatic abandakanya ukulungiswa kwe-bolts, i-actuator housing, i-crank arms, iibhloko ze-cylinder, i-cylinder shafts, i-pistons, i-rods yokudibanisa, i-universal joints, njl.
Ngentla yindlela yokufaka ucingo kwiValve yeSolenoid yomoya. Imiyalelo yocingo lwesiqulatho seValve ye-Pneumatic Solenoid, ukufunda ulwazi oluninzi olunxulumeneyo luyafumaneka apha.https://www.joosungauto.com/.
